Keeping workers safe is a top priority in high-risk jobs like construction, utilities, and manufacturing. Every day, workers in these fields handle tasks that often place them at dangerous heights, such as climbing ladders, working on rooftops, or maintaining power lines. In these situations, having the right personal fall protection equipment can make all the difference between a safe day on the job and a severe injury.
With the right equipment and proper training, companies can ensure that everyone gets home safe, no matter how high up they work.
Know about this with us!
What is Personal Fall Protection Equipment?
Personal fall protection equipment is gear that helps keep workers safe when they work at high places. Its main purpose is simple: to prevent falls or to stop a fall safely if one does happen. This equipment includes harnesses, ropes, and anchor points that work together to protect a worker from a dangerous fall.
For additional information on fall protection kits, visit our personal protective equipment kits guide.
Components of Personal Fall Protection System
A fall protection system comprises several parts that protects the workers when high off the ground. Each part plays a specific role, creating a powerful system that safeguards against falls.
Here’s a closer look at the main three components:
1. Anchorage
The anchorage, or anchor point, connects the fall protection system to a robust and stable spot. This connection is crucial because it holds everything in place if a fall happens. These points need to be strong enough to support the force of a person falling, which is why they’re usually attached to solid structures like steel beams or concrete columns.
There are two main types of anchorages:
Fixed anchorages are permanent and built into structures, like those found on tall buildings or construction sites.
Portable anchorages, however, are designed to be moved and set up wherever needed, making them useful for temporary jobs.
2. Body Support
Body support includes the safety harness or body belt that a worker wears while operating at heights. The harness is vital to the system because it wraps securely around the body, with straps across the chest, waist, legs, and shoulders. This design spreads the force of a fall across these necessary body parts, reducing the chance of injury.
Some harnesses are specially designed for different jobs. For example, a “positioning” harness lets employers lean back in the harness while keeping their hands free for work. Body belts, which only go around the waist, are still used in some jobs. Still, they’re considered less safe because they don’t support the entire body in a fall.
3. Connecting Devices

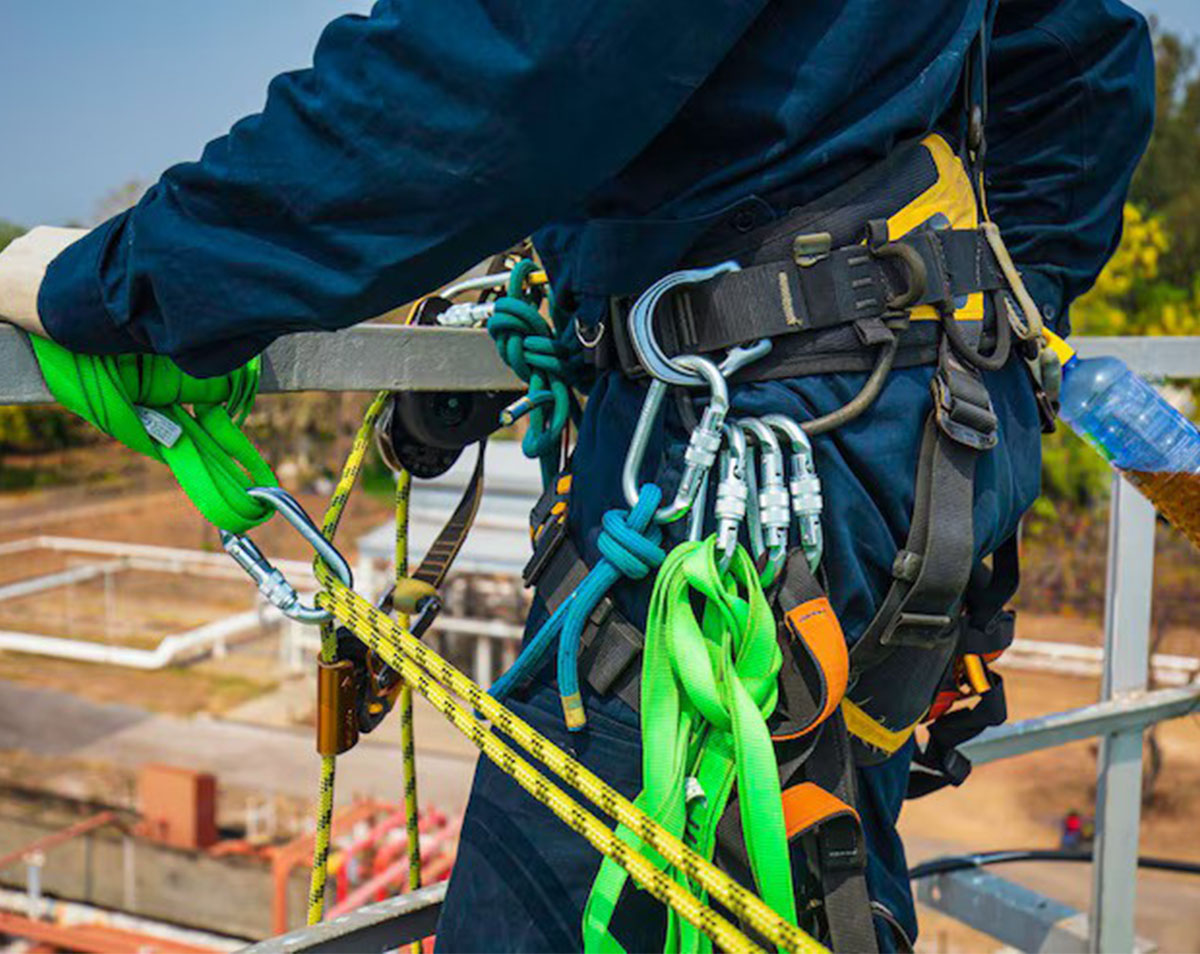

Connecting devices link the worker’s harness to the anchor point, allowing movement but keeping him connected to safety. These devices are lanyards, lifelines, and carabiners.
Lanyards are strong ropes or straps that connect the harness to the anchorage, and many are built to absorb shock, which assists soften the force of a fall.
Self-retracting lifelines (SRLs) are a particular type of lifeline that works like a seatbelt—allowing freedom of movement but locking up if a fall starts.
Carabiners are metal clips that fasten different parts of the system together, and they’re made with secure locking mechanisms to prevent accidental openings.
4. Rescue and Descent Equipment
Rescue and descent tool is used in emergencies to bring a fallen worker back to the ground safely. In some tasks, this equipment is essential because it helps ensure that a worker falling can be rescued quickly and without further risk.
For example, descent devices slowly lower the worker in a controlled way if a fall occurs, while retrieval systems allow other team members to bring the worker to safety. These tools are crucial for situations like confined spaces or tall structures, where immediate rescue may be difficult.
Types of Equipment for Fall Protection
This tool includes various tools designed for different safety needs.
Safety Harnesses
Safety harnesses are essential body supports designed to distribute the force of a fall across the body to reduce injury. A full-body harness wraps around the chest, waist, legs, and shoulders, providing full support. This is ideal for high-risk jobs like construction or tower work. A positioning harness allows hands-free work by securing the worker appropriately for tasks requiring both hands, such as pole maintenance.
Lanyards
Lanyards connect the harness to an anchor point. Shock-absorbing lanyards reduce fall impact slightly by stretching while positioning lanyards to hold the worker securely in a set position. Both types allow movement within safe limits while staying connected to the anchor.
Self-Retracting Lifelines (SRLs)
SRLs function like seatbelts, locking if a fall occurs. Often used as vertical lifelines for ladder climbing, they enable up-and-down movement while staying attached. Some SRLs have tie-back features, allowing flexibility in areas with limited anchor points. SRLs are widely used in construction due to their strong protection and mobility support.
Anchor Points
Anchor points are the secure attachment spots for fall protection gear. Permanent anchors are built into structures, while temporary anchors can be installed as needed. Roof anchors are standard in construction and allow safe movement along the roof. All anchor points must be strong enough to support a fall without failure.
Guardrails and Safety Nets (Passive Protection)
Guardrails are barriers along edges that block accidental falls without requiring personal gear. Safety nets are placed below high work areas like scaffolding, catching workers if they fall. These passive protections are ideal when workers need safety without wearing fall protection equipment.
Active vs. Passive Fall Protection Systems
The main difference is that active systems need the worker to use them correctly, while passive systems work automatically to prevent falls without requiring any action from the employer.
Active Fall Protection
Active systems include harnesses, lanyards, and lifelines. These require the worker to put on and connect the equipment properly to stay safe.
For example, a worker might wear a full-body harness and attach it to an anchor point with a lanyard or lifeline. If they slip, the harness and lanyard stop the fall, but only if the equipment is set up and used correctly. This system gives workers more freedom to move around carefully at heights.
But, it does require training and attention to detail. Workers must inspect their gear, know how to put it on and ensure everything is securely attached before starting work.
Passive Fall Protection
Passive systems don’t need workers to interact with them; they work independently to stop falls. Guardrails, safety railings, and nets are all passive systems.
For example, a guardrail around the edge of a roof blocks a worker from accidentally stepping off. Safety nets, often placed under scaffolding or high platforms, catch workers if they fall.
These systems are ideal for areas with high traffic or where wearing active fall protection might be impractical. These systems reduce the risk of falls without relying on the worker’s actions, making them especially useful in busy work areas or as added safety alongside active equipment.
How to Select the Right Fall Protection Equipment
Choosing the proper equipment for fall protection is essential because different tasks and environments require specific safety measures. To make the best choice, consider factors:
Job Type
The type of job is a crucial factor. For example, construction work often involves moving around on rooftops or climbing ladders, so full-body harnesses and lifelines that allow freedom of movement are usually necessary. In contrast, someone working on a stable platform might benefit more from passive protection like guardrails.
Environment
If the work occurs in wet or windy conditions, you’ll need tool that can withstand these elements, like corrosion-resistant anchors or durable harness materials. The height of the workspace also matters; taller jobs may require more robust, high-capacity anchors and shock-absorbing lanyards to reduce fall impact.
Finally, consider mobility needs. If workers need to move around freely, self-retracting lifelines (SRLs) allow for a range of motion while staying securely attached.
Industry-Specific Requirements
Certain industries have specific fall protection needs. For example, electrical workers need Arc Flash-rated equipment to protect them in case of electrical hazards. Similarly, industries like oil and gas or chemical handling might require fall protection that resists chemicals or extreme temperatures.
Maintenance & Inspection of Fall Protection Equipment
Regular inspection and proper care are essential to keeping fall protection equipment reliable.
Daily Inspection Tips
- Before using any fall protection gear, inspect it closely.
- Look for any signs of wear, like frayed edges on straps, cuts, or tears.
- Check for rust or cracks on metal parts, such as carabiners or buckles.
- Check harnesses and lanyards for loose stitching or worn-out areas. If you spot any damage, replace the equipment immediately, as using faulty gear can be dangerous.
More on inspection requirements of OSHA on fall safety devices.
Scheduled Maintenance
Beyond daily checks, these needs regular, in-depth inspections. Schedule these at least once a year or more often if it is used frequently or in harsh environments. Professional servicing can identify minor issues that might be missed in a quick check, such as weakening materials or hidden wear.
Keeping records of these inspections helps track the equipment’s condition over time and ensures it meets safety standards.
Best Storage Practices
Proper storage can prolong equipment’s life. Keep harnesses, lanyards, and other gear in a dry, cool place away from direct sunlight, as heat and sunlight can weaken materials.
Hang harnesses or place them in designated storage areas to avoid tangling or crushing. Avoid storing equipment near chemicals, oils, or sharp objects that could cause damage.
Resources:
Visit OSHA’s standards for fall protection:
- OSHA 1926.501 – Duty to Have Fall Protection​
- OSHA 1910.140 – Personal Fall Protection Systems
- OSHA’s general fall protection guidelines
